  Products: Wirecrafters - Introduction

Introduction
Posts & Panels
Stock Doors
Application
Also Available
WireCrafters

 Posts and Panels

Style 840 panels are 1' to 10' wide, and 4' or 5' high. Full height partition walls are built by stacking two or more panels between standard posts. Posts are configured for a standard 3-1/4" sweep-space, and project 2" above the panels. Our standard panels can be used in ceilings or walls. Stack panels to any height by extending  the length of the post. Flush to floor partitions are made by modifying the post's standard hole layout.

Typical Post Panel Connection
WireCrafters Image1 WireCrafters Image2 WireCrafters Image3 WireCrafters Image4
Base Plate
Design
Corner Post
Outside View
Run Post
Inside View
Tee Post
Inside View



WOVEN WIRE PANELS

  • Ten widths: 1'-0" to 10'-0" in one foot increments
  • Two heights: 4'-0" and 5'-0"
  • Standard Mesh: 10 gauge (.135) wire woven into 2" x 1" rectangular opening (other mesh available)
  • Standard Frame: 1-1/4" x 1-1/4" x 1/8" steel angle

Ceilings

  • Use same panels as walls
  • Attach to partition walls with slotted angle
  • Clear spanned up to 35'
  • Large ceilings supported by 2" square horizontal ceiling tubes
  • Add to existing partition without changing layout
  • All ceilings are non-load bearing



WireCrafters Image5

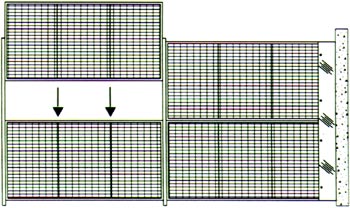

Stackable Panels

Adjustable Panel

ADJUSTABLE PANEL
Four hard to measure areas, use our sheet metal adjustable panel. It allows for partition width adjustments from 1" to 12".

POSTS

  • Stock sizes: 8'-5 1/4", 10'- 5-1/4" and 12'-5 1/4"
  • Standard hole layout allows for 3-1/4" sweep-space.
  • Posts project 2" above top of panel
  • Standard baseplate: 2" x 7" with holes for anchors
  • Special length posts are available to 40'
  • Oversized base plates are available
  • Floor anchors (3/8") are included with your order
