  Products: Pioneer Mechanical Pit Leveler

Hydraulic Edge-of-Dock Leveler
Mechanical Edge-of-Dock Leveler
Hydraulic Pit Leveler
Mechanical Pit Leveler
Pneumatic Pit Leveler

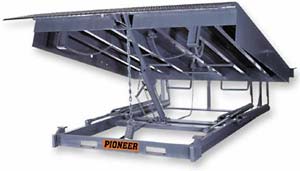

 P2000 Series (P1000 Also Available) - Mechanical Pit Leveler
  • 20,000; 25,000; 30,000; 35,000; 40,000; and 45,000 lb. Dynamic Capacities

  • 6', 6' 6", and 7' Widths
  • 6',8', and 10' Lengths (Custom Sizes Available)
Dependable PIONEER Levelers Keep Working For You
Offering a variety of dynamic capacities, the P2000 Series Leveler provides 18" and 20" lip options, in addition to many other custom features. Dual 60,000 lb. safety legs provide additional strength and support. Deck and lip are constructed of 55,000 lb. minimum yield steel tread plate. Lip keepers server as night locks for security and provie safe cross-traffic support when unit is stored. Dock bumpers and grease fittings on lip hinge are standard with each unit.

Warranty
PIONEER offers a 3-year warranty (P2000 Series only) on structural members and main springs. A 1-year warranty is provided on mechanical and miscellaneous parts (including materials, labor, and freight).

Guarantee
Pioneer will provide our standard warranty or match any documented competitive warranty in the industry for comparable models. There is no fine print. We build it and we guarantee it!

PIONEER's solid steel Structural "C" Channel offers matchless deck support - providing a 39% greater resistance to elastic bending moments than other industry designs.

Positive Hold-down Device allows up and down float when in service.

Fully mechanical, single-handed Pull-chain Operation means NO LIFTING or STRAINING.

Direct Extension Spring Design has no moving parts - nothing to service!



 Metric Specifications
- 9,072; 11,340; 13,608; 15,878; 18,144 and 20,412 kg Dynamic Capacities
- 1,829; 1,981 and 2,133 mm Widths
- 1,829; 2,438 and 3,048 Lengths



PIONEER offers a complete line of finely crafted, technologically advanced loading dock equipment, including Mechanical and Hydraulic Pit Levelers, Edge-of-Dock and Top-of-Dock Levelers, Portable Dock Boards, Vehicle Restraints, Dock Seals and Shelters, and other quality accessories.

All PIONEER Levelers meet or exceed the performance requirements of CS202-56, O.S.H.A., and A.N.S.I. MH14.1-1984

Durability

  • Deck and lip are constructed of 55,000 lb. Minimum Yield Steel Tread Plate.
  • All PIONEER P Series Levelers are exclusively equipped with Solid Steel Structural "C" Channel for maximum deck support. Each beam is fully welded to a Full-width Header Plate (6") at the front of the Leveler.
  • Direct Extension Spring Design has no moving parts - nothing to service!
  • Extra Heavy Rear Angle with Strategically Placed Gussets provides maximum structural support and frame strength.
  • Molded Bumpers included to protect dock face and Leveler from truck damage.
  • Continuous Hinge Design with Grease Fittings included as standard with each unit.

Easy Installation

  • Front and rear Forklift Slots provide easy access for maneuvering and installation.
  • Side Ports allow unit to be suspended and lowered into pit from dock floor.
  • Custom engineered Rear Angle is two inches wider than the Leveler, providing extra area to weld at both ends.

Simple Operation

  • Conveniently located Pull-chain provides easy activation of deck and lip.
    Direct extension Spring Counterbalance provides easy walk-down.
  • Operating Range of 12" above and 12" below dock allows Leveler to be recycled with truck in position.
  • Automatic Lip locks into position when extended and releases when unit is walked down to position on truck floor.

Safety

  • Maintenance Struts are a standard feature on all P Series Levelers.
  • Positive Hold-down Device allows up and down float when in service.
  • PIONEER's Counterbalance System operates on simple, Direct Extension Spring Design with no moving parts. Adjustment Nut is located at the front of the leveler for safe, easy access.
  • Lip Keepers serve as night locks for security, and provide safe Cross-traffic Support when unit is stored. Deck tilts to a maximum of 4" from side to side to compensate for unlevel trucks.
  • Safety Legs automatically provide below dock support in event of premature truck departure.
  • Working Range Toe Guards protect workers from injury during loading and unloading.

P1000 Series

  • Solid PIONEER Levelers Keep working for You.
  • 25,000 lb. and 30,000 lb. Dynamic Capacities
  • 6' and 7' Widths
  • 6' and 8' Lengths
Warranty: PIONEER provides a 1-year warranty on structural members. A 1-year warranty is provided on the mechanical and miscellaneous parts (including materials, labor, and freight).


SIMPLE OPERATION

1.  Conveniently located pull-chain provides easy activation of deck and lip.

2.  Direct extension spring counterbalance provides easy walk-down.

3.  Adjustment located at the front of the Leveler for safe, easy access.
